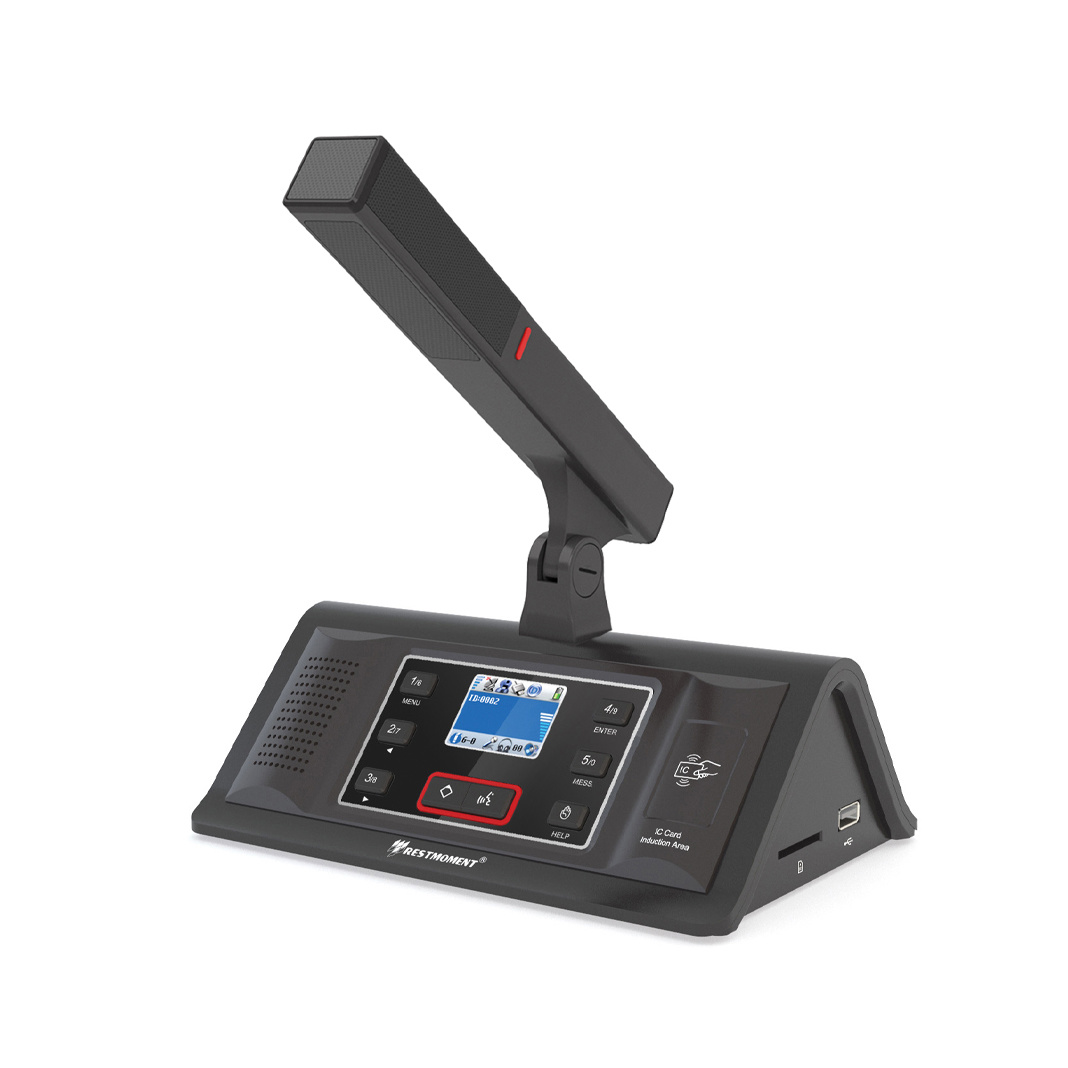

Paper Nameplate Conference Unit RX-6612/02
Restmoment original all digital conference technique, Compliant to IEC60065. It has 160(H)×128(V) Color TFT display screen.There is a removable acrylic paper nameplate on the back side of unit, easy and convenient. Inductive IC card; Support IC card sign-in, delegates degree identifying, IC card key and setup menu language etc
Product number:RX-C6612/02 RX-D6612/02
- Technical Specs
Ø Restmoment original all digital conference technique, Compliant to IEC60065
Ø Built-in 24 points self restraint return function, close to CD sound quality
Ø Discussing and display integration design, smart and attractive.
Ø All digital audio transfer technique, point to point connection mode, remote transmission won’t influence on sound quality. Distance between two units could reach at 150m
Ø Has 160(H)×128(V) Color TFT display screen
Ø There is a removable acrylic paper nameplate on the back side of unit, easy and convenient.
Ø Adopts 14mm diameter gold-plated capacitive microphone core; The pickup distance is up to 100cm
Ø Has “Y type line”, “Distribution boxes hand by hand” and “Hand by hand in ring” connections.
Ø Inductive IC card; Support IC card sign-in, delegates degree identifying, IC card key and setup menu language etc
Ø Built-in high fidelity speaker, when turn on MIC or connect with earphone, speaker could mute automatically.
Ø Each unit has arbitrary distribution ID address, convenience for installation and avioding ID address repeating
Ø Built-in channel selector, can transmit 8/16/32/64 language and display CH Number
Ø Stereo earphone output, could adjust volume.
Ø 5 work modes
● Limited mode ● FIFO mode
● Apply mode ● Voice activating mode ● Free discussion mode
Ø Send/receive message function
Ø Cooperated with video controller and camera, have video tracing function.
Ø Chairman unit have Priority, could switch off all the speaking units.
Ø System support 150 chairman units, could specify one as chief chairman, carry out function as follow,
● Switch work mode
● Activate sign-in, voting
● Receive or reject application speech
● Switch off appointed MIC
● Switch off the earliest MIC
● Switch off all MIC
Ø In combination with the corresponding software modules, multiform voting can be implemented:
● Parliamentary: agree/oppose/abstain, Pass-rate setup
● Multi choice/Opinion poll:1/2/3/4/5
● Audience response/Rating:--/-/0/+/++, could setup content
● Score: 0--100, practically participant person as average fractionKeywords:
- Wired electronical display conference system-Paper Nameplate Conference Unit
Electronic Nameplate Chairman unit
Electronic Nameplate delegate unit
Depends on system controller，≤65535
20—20KHz (Human voice golden Frequency respond)
Sensitivity of MIC
Resolution of channels
Total harmonic distortion
16Ω，250mW / 32Ω，125mW
Size of front screen
160(H)×128(V) 265K color TFT display screen
Acrylic paper nameplate
IC card function
Support IC card sign-in, input name and position
Setting and distributing by system controller
“Y type line”, “Distribution boxes hand by hand” and “Hand by hand in ring”
Big 6 pin DIN
Simultaneously interpretation receiving channels
Video tracking function
Depends on mode, 5 keys
L×W×H： 202×135×68mm（Exclude the microphone pole）
Black, Silver,Grey (Custom-made)
