Audio/video matrix and peripheral equipments- Wireless RF Receiver RX-RF8000/B

It is used to receive the control signal transmitted from the wireless touch screen. Working with wireless touch screen RX-TS8000/70S. The signal is transmitted to the programmable central controller through the network communication port

Product number:RX-RF8000/B

Category：

Audio/video matrix and peripheral equipments

Download：

Message Us

Description
Technical Specs

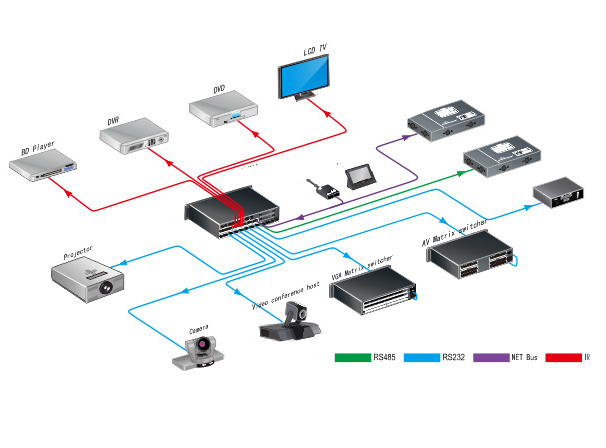

Connection

Ø It is used to receive the control signal transmitted from the wireless touch screen

Ø Working with wireless touch screen RX-TS8000/70S

Ø The signal is transmitted to the programmable central controller through the network communication port.

Ø It has power supply, network ID and communication indicator

Ø 433MHz working frequency, unidirectional transmission. It only can receive wireless control signals emitted from the touch screen

Ø It is divided into one-way and two-way wireless receivers

Ø One-way wireless receiver is RX-RF8800/B, and two-way wireless receiver is RX-RF8800/A
Keywords:
- Audio/video matrix and peripheral equipments- Wireless RF Receiver

Model	RX-RF8000/B
Input Power	24VDC power supply
Control type	Wireless
Wireless frequency	433MHz
Communication interface	NET interface
Remote control distance	50M
ID setting	Network ID
Indicator	It has indicators for power, ID and communication
Receiving antenna	Helical receiving antenna interface
