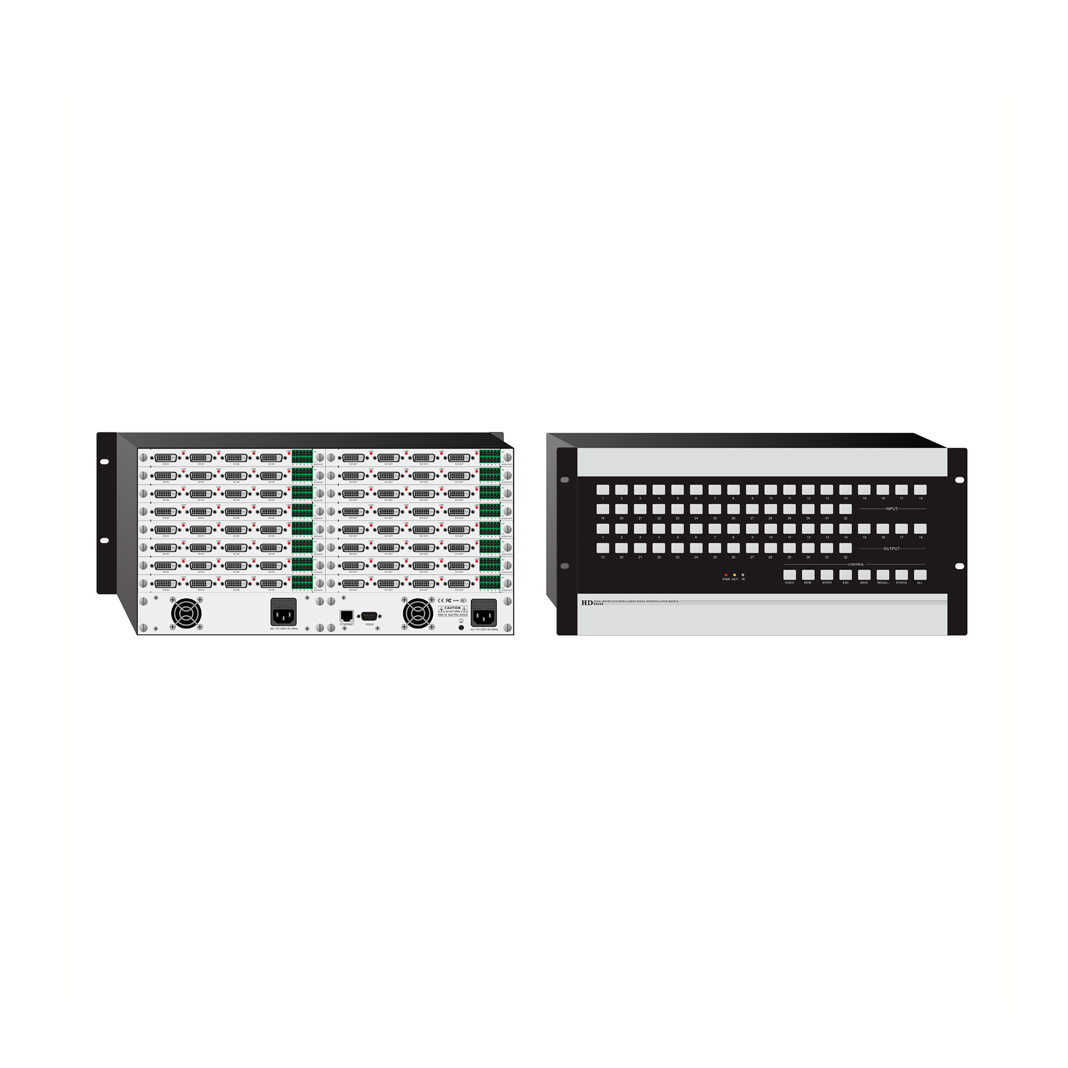

Series 4K HD Hybrid Matrix RX-MDN4K36
Adopts modular plug-in design. Support full hot swap, and recovery time is less than 5 seconds;Input and output: support max 4K@30Hz input/output. Input and output correspond point by point.
- Technical Specs

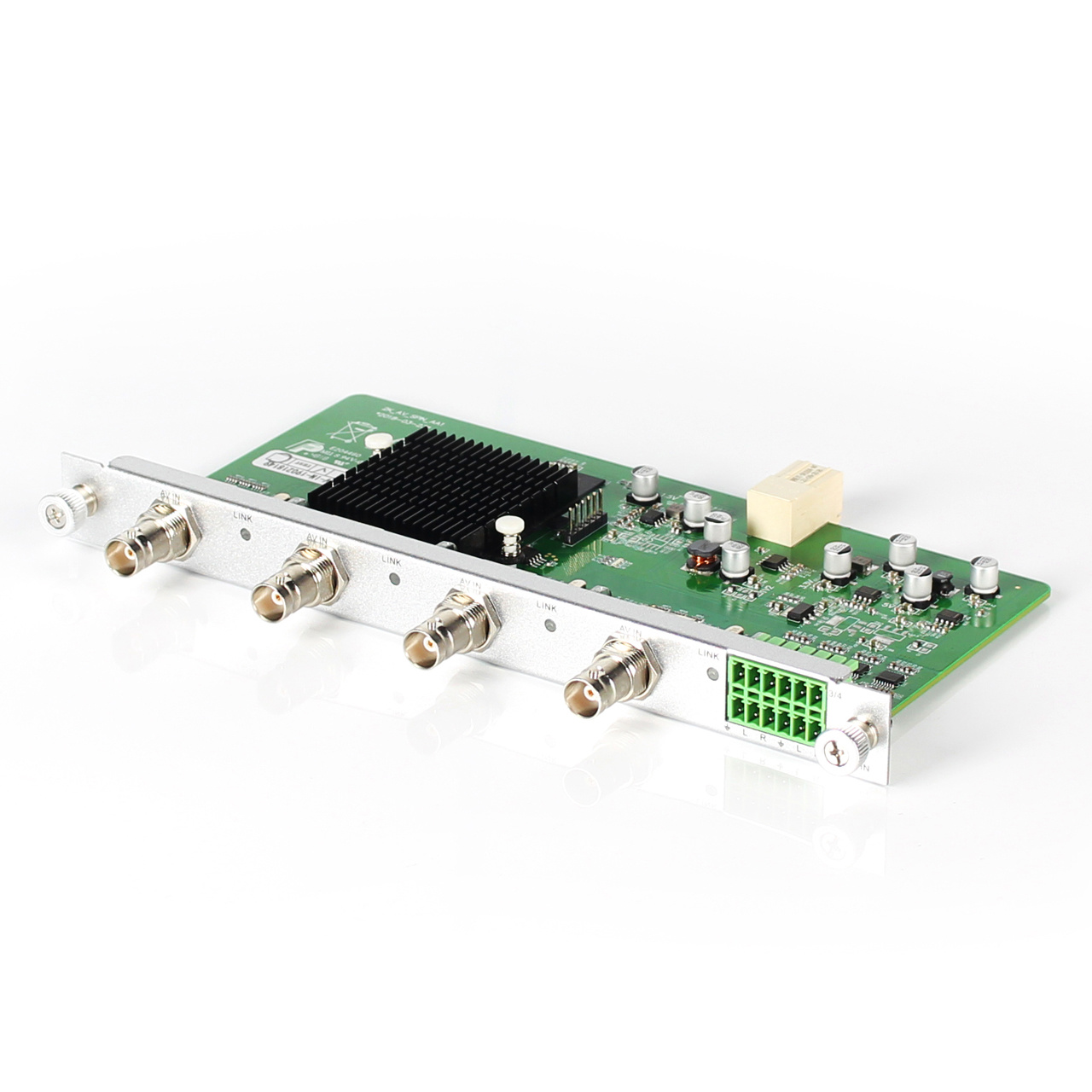

Ø Adopts modular plug-in design. Support full hot swap, and recovery time is less than 5 seconds;
Ø Adopt backplane switching architecture, use dual-core hot backup redundant video switching circuit, support redundant hot backup;
Ø Full frame processing: support 3840x2160@30Hz full frame processing; 1920x1080p@60Hz full frame processing;
Ø Input and output: support max 4K@30Hz input/output. Input and output correspond point by point. And image quality is lossless. It also can support switching from any resolution input to any resolution output;
Ø Roaming and superimposition: support max 4 channels 4K signal segmentation, windowed roaming, and superimposition. And multiple screens can coexist on one display device;
Ø Picture stitching: It has built-in picture stitching function. It supports max 4K signal lossless processing and stitching. And it can preview 4K signal source real-time.
Ø Video preview: After selecting the preview module, the control terminal supports visual operation. And all signals can be previewed and displayed in real time through the operation terminal;
Ø Seamless switching: It has seamless screen switching, no black scene, low latency. And the switching time is less than 1 frame (16.7ms);
Ø Channel customization: It can customize output resolution and refresh rate for each channel;
Ø Inquiry: You can inquiry the relationship between input and output through the panel matrix;
Ø Panel button adjustment: You can adjust the resolution, the image up and down, left and right, and the force output mode to DVI or HDMI mode through the panel buttons;
Ø Authority management: The software has authority management.
Ø Collaborative operation: The software supports multi-users collaborative operation.
Ø Permission assignment: It can access distributed KVM. It can manage multiple computers at the same time.
Ø Signal push: It can cooperate with KVM to push distributed and IPC signal to any position on the big screen without any software and equipment (such as tablet, etc.). And the video signal information of the original position can be read before pushing;Keywords:
- Series 4K HD Hybrid Matrix
