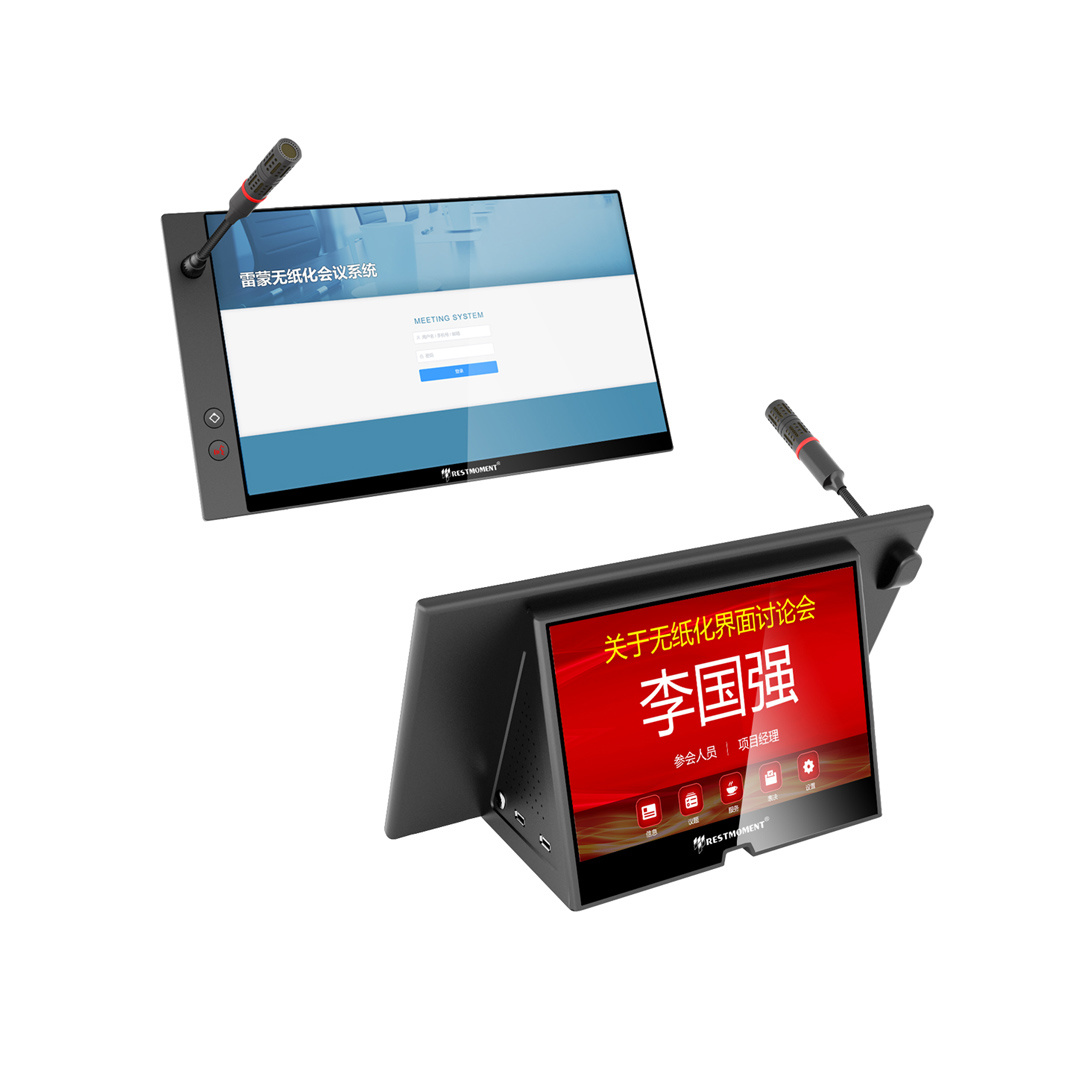

15.6 inch Flip screen paperless integrated terminal RX-D6101/F
The lifter and the screen connection are integrated, no backplane connection, no exposed screws. The whole design is simple, noble and elegant; the lifter and the screen are independently designed (the screen and the lifter can be separated, and the FPC flexible cable is connected). And it can be upgraded independently.
- Technical Specs
Ø The lifter and the screen connection are integrated, no backplane connection, no exposed screws. The whole design is simple, noble and elegant; the lifter and the screen are independently designed (the screen and the lifter can be separated, and the FPC flexible cable is connected). And it can be upgraded independently.
Ø Material technology: The screen and lifter panel are made of all-aluminum alloy shell. And it adopts the overall CNC design, finely crafted one-piece molding, and sandblasted anodized finishing.
Ø Screen size: 15.6-inch LCD screen; resolution: 1920*1080; screen viewing angle: IPS full viewing angle screen; touch screen type: magnetic capacitive screen, 10-point touch; display ratio: 16:9; brightness: 400 lumens; static Contrast: 6000:1
Ø Screen interface: The screen and the lifter use a high-integration FPC flexible cable high-definition interface to achieve "screen power supply", "image", "data" and "" touch" transmission
Ø The overall size of the touch screen: L: 377mm, H 237mm. The thickness of the screen is 7.8MM and the thinnest part is only 4.8MM
Ø Lifter panel size: L 420MM X W 73MM X H 5MM
Ø Double clean-sound slide rails. It cooperates with gears to engage and lift. The multi-point balance lifting system is stable and reliable
Ø The elevator control software supports PC installation. It is compatible with common operating systems. And it can be controlled uniformly or in groups to make the movement of the elevators such as ascending, suspending, and descending
Ø The lifter panel has these functions: up, pause, down, multimedia conference terminal switch, USB interface, etc.
Ø The control mode supports hand-in-hand 232 control, remote control and manual control.
Ø When the screen rises to the right position, the automatic tilt angle is 15 degrees. It ensures the best viewing angle and touch angle of the monitor ergonomics.

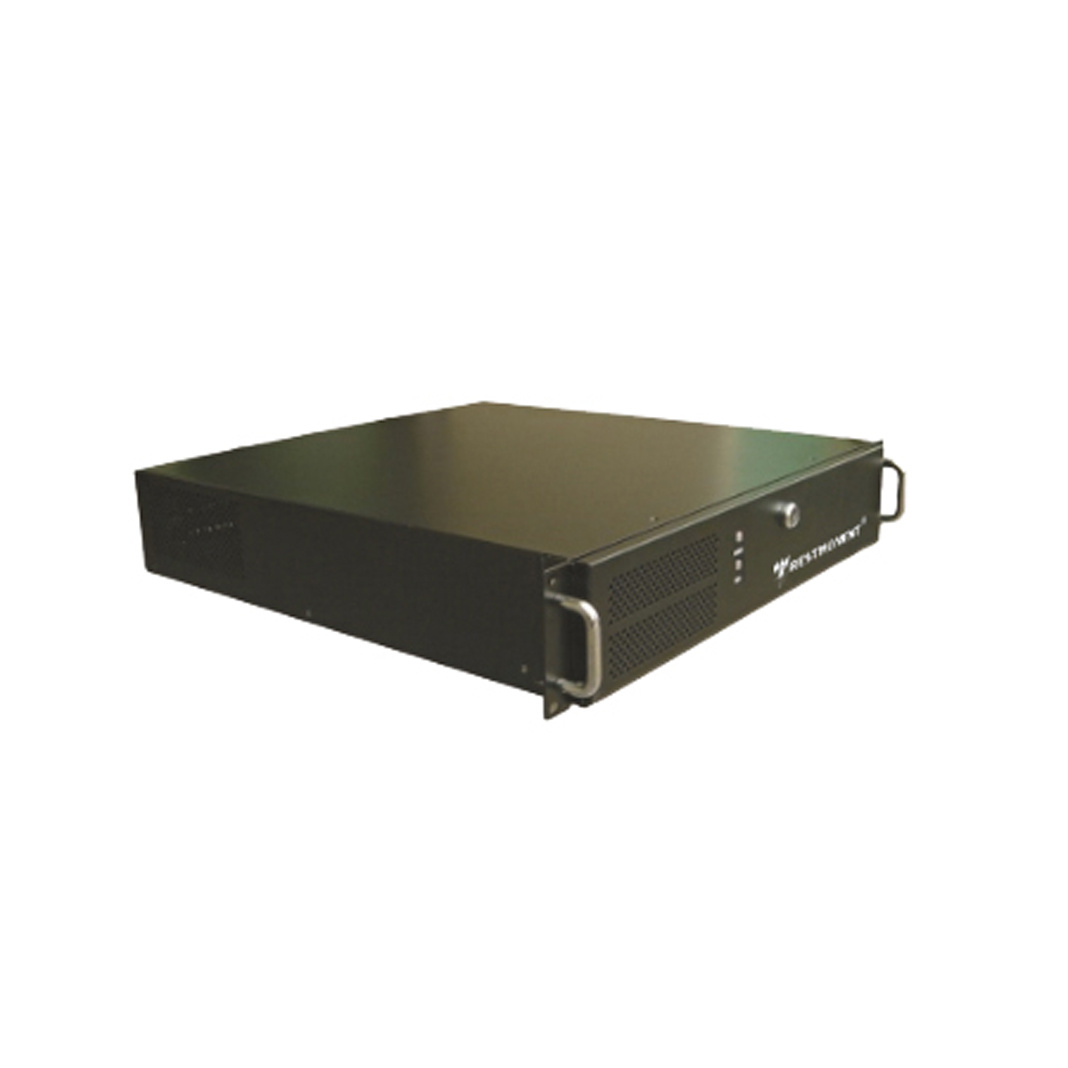

Ø Controller hardware configuration: Inter dual-core processor, CPU frequency 3.3G hz; Memory: 4GB DDR3; Hard disk: 32G SSD solid state
Ø System and architecture: Adopts Windows7 system to ensure the compatibility and expansibility of office software and other softwares; the client software adopts C/S architecture to ensure the processing power and stability of the client PC.
Ø Support wired and wireless hybrid networking; support cross-segment operation.
Ø Supports cross-platform operation and supports android terminal, windows terminal and linux terminal mixed network operation. And it can realizes the following software functions:
● Nameplate display function
● Conference banner function
● Conference information function
● Meeting agenda function
● Meeting topic function
● Document annotation function
● Basic conference functions: support conference check-in, voting, interactive electronic whiteboard, document annotation, information exchange function, conference service call, receiving notification information pushed by background software and other conference functions
● On-screen broadcast function
● Asynchronous browsing function
● Tracking lecturer function
● External signal display function
Ø Product color: Brushed black/silver, Sandblasted black/silver (other colors can be customized)Keywords:
