RX-PV4 Series Conference Software

The operation of RX-PV4 series is easy, safe and reliable. The controller is connected to the network through the RJ45 network interface or directly connected to the computer. The users can centrally control the conference system, simplifying operations and improving efficiency.

RX-PV4 series software is divided into six parts: system setting, conference, personnel file, seat, microphone, video and agenda management. Each part contains multiple functional modules.

The main interface after the software login is shown as below.

System setup includes: system detection, volume adjustment, controller setting backup, other setting, microphone setting, controller password, working mode, video setting, saving system settings, input and output, password settings, total 11 modules.

Microphone setup includes: automatic gain, bass cut, EQ setting, chairman priority, speaking time, executive chairman, VIP setting, lighting setting, microphone setting reset.

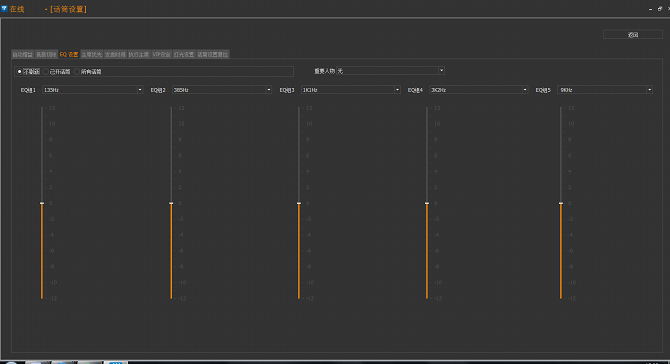

EQ setup includes: 5-band EQ, EQ1-EQ5. Each EQ has 4 values, such as EQ1 has 80, 105, 135, 175. The adjustment range is from -12 to +12DB, and step size is 2DB. You can adjust the speaking microphones or all microphones.

The conference includes two modules: venue design and conference modification.

Audio area selection: The venue design includes audio area selection. The audio output of the controller can be divided into 8 areas. And different microphones can be arbitrarily setup to output from different or the same area.

The personnel file includes three modules: group and organization, personnel addition and modification, and participants.

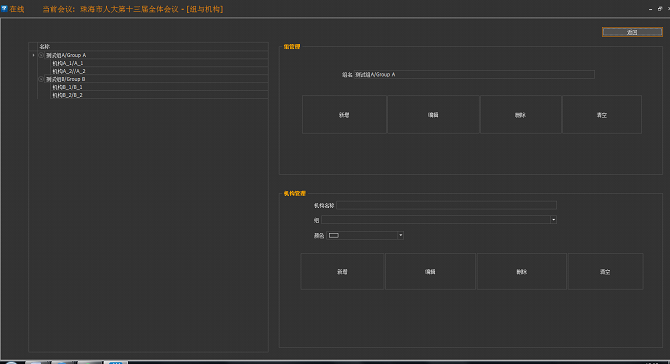

Groups and Organization

     Group management: Usrs can add, edit, delete, and clear groups.

     Organization management: Users can add, edit, delete, and clear organizations.

Personnel Addition and Modification: All personnel can be imported in batches. And individual personnel also can be added or deleted.

Video setup:

         Video Matrix: Setup the output video channels 1-8 and the output camera image.

         Dome camera corresponds to the microphone: when the microphone is turned off, users can setup the actions of the video tracking, including: tracking the previous unit, no action, tracking 1, 2...or a certain microphone, one or more of the preset panorama 1-4.

         Camera protocol setting: Each camera can setup different control protocol, including: RX-V, PELCO-D, PELCO-P, SonyVISCA.

         Baud rate: The communication rate between the controller and the camera, including 2400, 4800, 9600, 19200.
