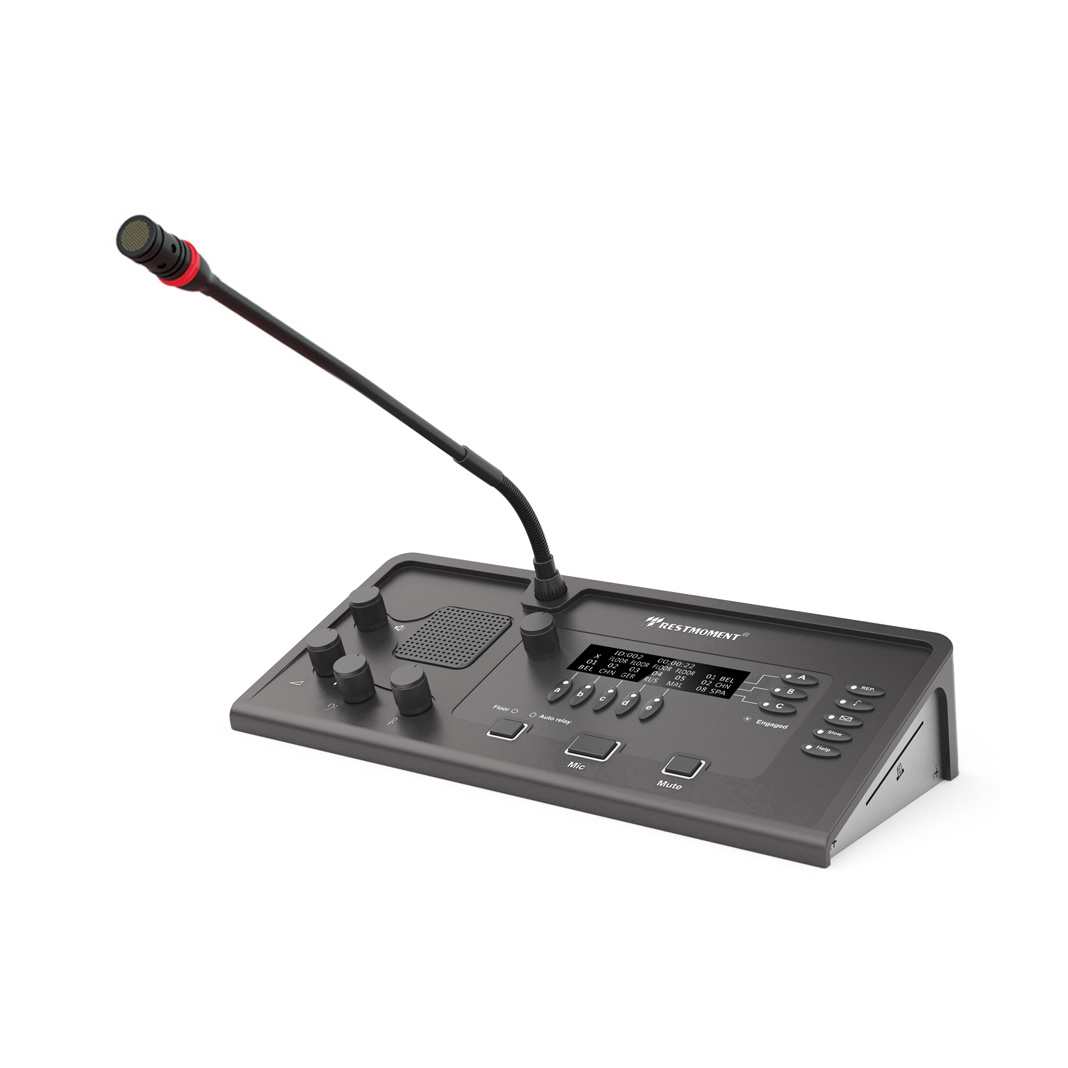

language interpretation console Interpretation console RX-E9208
The full digital simultaneous interpretation system adopts full digital audio decoding and digital audio compression technology. And the output sound quality is close to CD-level sound quality. 5 channels of input language channels and 3 channels of translation audio output channels can be preset with shortcut keys. Built-in IC card reader; Also it supports identity recognition function
- Technical Specs
Ø Restmoment original full digital conference technique, compliant to IEC 60914 and IEC 60065 international standard.
Ø 256X 64 LCD display. It can display conference information and working status real time.
Ø Aluminium alloy appearance.
Ø This system adopts 6PIN hand by hand connection.
Ø Full digital audio transmission technique; Point to point connection; Remote transmission won’t influence on sound quality. Distance between equipments could reach at 150m.
Ø Adopt full digital audio codec technology and digital audio compression technology. The sound is near CD quality after infrared transmission. Listeners have comfortable, natural and high quality sound finishing
Ø Sampling frequency reaches 48K; Frequency response of all 64 channel can reach 30Hz – 20KHz.
Ø 8 (including floor channel) multi-language interpretation function and monitoring function. Working with channel selector or infrared system to extend the audience.
Ø Hand by hand in line connection between consoles. One interpretation controller can connect 80pcs consoles max. If one console has problem, other consoles can work well in the line.
Ø Built-in high-pass filter which can filter out the unnecessary low frequency component.
Ø Same channel interlock function. And it has channel occupancy light to make sure the channel’s uniqueness.
Ø Second translation function. If the interpretor can not understand floor language, he can listen to other interpretor’s sound to do second translation.
Ø Cough elimination function. Interpretor can turn off microphone shortly to prevent cough sound to conference hall.
Ø Speaking speed remind function. Interpretor can press key to remind speaker.
Ø Help function. Interpretor can press HELP to call operator.
Ø Preset language name either by the main unit or the application software.
Ø Preset 5 input language channel, and preset shortcut keys(a/b/c/d/e)
Ø Channel selector knob to choose input language channel easily.
Ø Preset 3 interpretation audio source output channel and shortcut keys(A/B/C) with channel occupation light.
Ø Microphone gain and EQ adjustable individually.
Ø Software can switch A/B/C output channel and turn off the console.
Ø Built-in IC Card reader.
Ø Built-in loudspeaker with volume control. If all microphones in the same booth are off and “FLOOR” indicator is on, the loudspeaker will play floor language.
Ø Allows an interpreter to override another interpreter in same booth supplying the same interpretation channel.
Ø Maximum 6 interpretation units can be installed in each booth.
Ø System has memory and playing back function.
Ø ON/OFF key for key tone.
Ø Built-in multi-channel intercom facility.
Ø System has arbitrary distribution ID address. Easy to install.
Ø Connected to interpretation controller individually. Or connected to system controller with other speaking units.
Ø Earphone output jack for headset earphone; Microphone input jack for external microphone.
Ø Microphone pole with speaking indicator light.
Ø Removable microphone pole, easy to be transported.
Ø Table top or embedded installation.Keywords:
- language interpretation console Interpretation console
Depends on system controller, ≤65535pcs, single controller ≤80pcs
30-20KHz(Human voice golden Frequency respond)
256X 64 LCD display
sensitivity of MIC
Resolution of channels
Total harmonic distortion
Hand in Hand ring
Big 6 pin DIN
Grey , Silver (Custom-made)
295(L) x 126(W)x 57(H) mm
