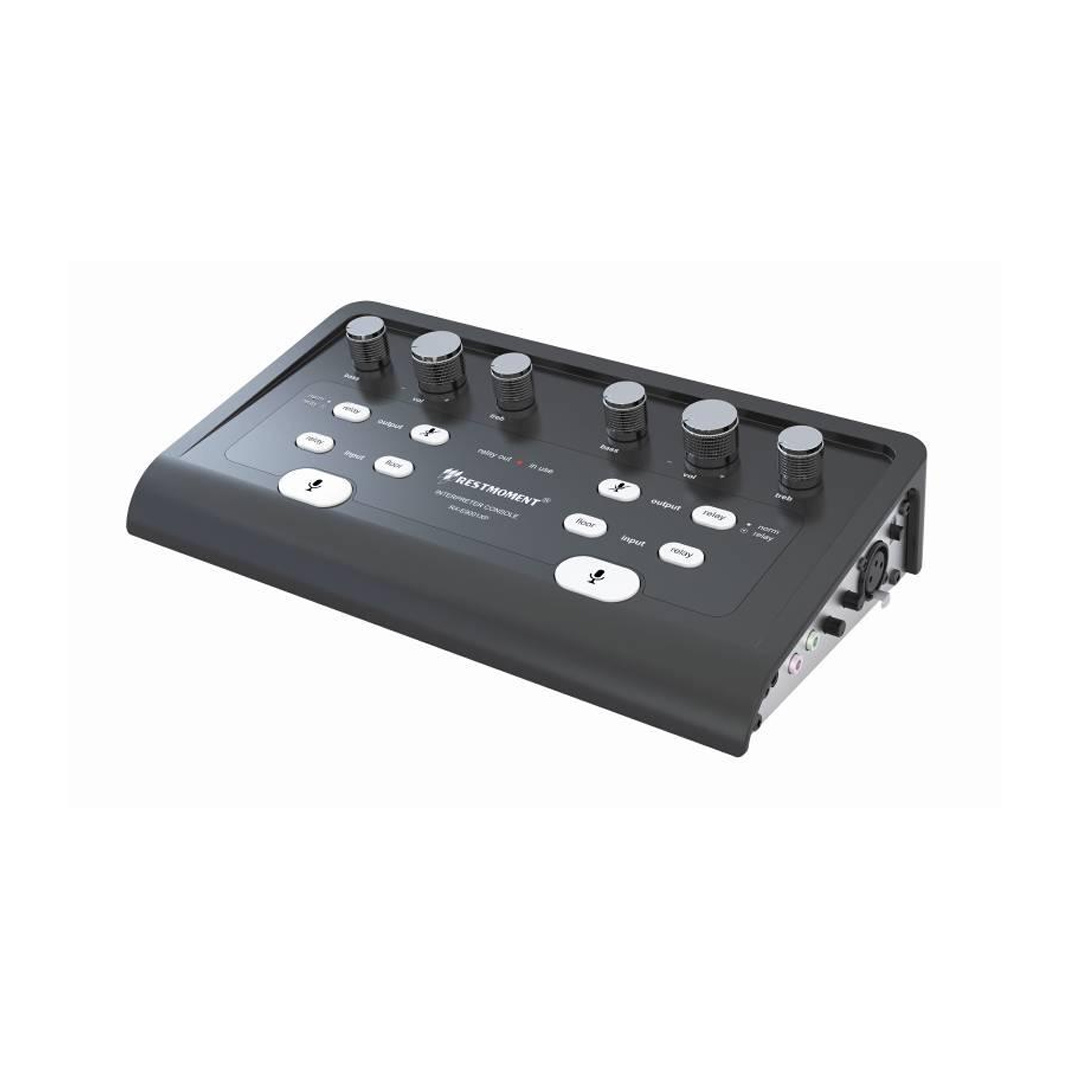

Full digital infrared language distribution system-Interpreter Console RX-E9002XP
The RX-E9002XP is an dual translation console for simultaneous interpretation. A single device allows one or two interpreters to monitor local or relay sources. The console is perfect for lecture-style meetings where all interpreters speak the local or "Relay" language. The RX-E9002XP has many useful new features to help simplify installation, improve audio quality and increase flexibility
Product number:RX-E9002XP
Download：
- Description
- Technical Specs
- Connection
-
Ø Adopt Restmoment original full digital conference technology, compliant to IEC 60914 and IEC 60065 international standard
Ø Reasonable function and layout, easy to operate.
Ø Aluminium alloy appearance. Steamline design, accord with clay engineering
Ø Adopt full digital audio codec technology and digital audio compression technology. The sound is near CD quality. Listeners have comfortable, natural and high quality sound finishing.
Ø Interpretator will not be disturbed by amplifier.
Ø LED display to make easy operation.
Ø 4 X USB charging jacks on two sides.
Ø Built-in audio power amplifier.
Ø Compatible with FM or Infrared system.
Ø 3 steps compression limit.
Ø Red LED key is flashing as OFF mode(Web-casting standard)
Ø Peak level indicator light allows technicians to easily ensure audio output levels are consistent.
Ø RCA jacks make recording the interpretation simple
Ø Multiple microphone and headphone connection options for each interpreter make using your existing equipment a snap.
Ø Supports an array of hands-free headphones and microphone.
Ø Individual controls for each interpreter ensure optimal listening and output levels.
Ø Automatic interlock of the relay channel.
Ø Floor signal enters into not occupied channel automatically.
Ø External 24V DC power supply.
Keywords:- Full digital infrared language distribution system-Interpreter Console
-
Parameter\mode
RX-E9002XP
Frequency respond
45Hz to 20kHz, +0/-3 dB re: 1kHz with flat bass/treble
Distortion
﹤0.5% THD @ Full power
SNR
＞ 82Db @ 1kHz
Crosstalk attenuation
＞ 63Db @ 1kHz
Timbre control
Bass: +12dB Boost or -12dB Cut @ 100Hz
Treble: +12dB Boost or -12dB Cut @ 10kHzPower
110-240VAC, 50-60Hz, 2A external power, 24VDC 2A tabletop switch
Dimension
335(L) x 182(W) x 65(H) mm
Weight
3KGS
Color
Black (Custom-made)
Installation
Tabletop
