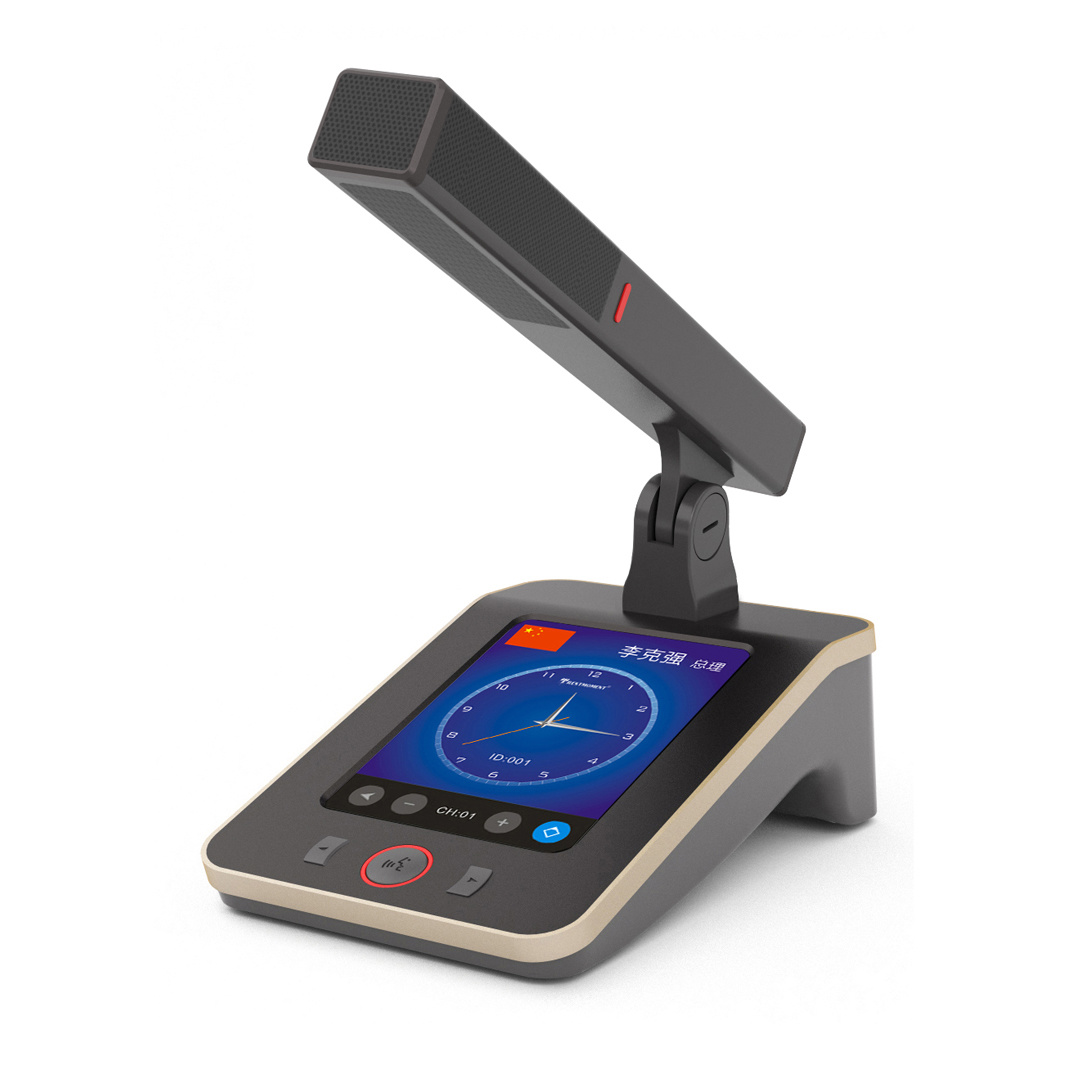

High-end conference unit RX-6830/01

Adopt 6pin cable transmission full-digital conference technology, compliant to IEC60065 international standard. Square super-cardioid microphone with 14mm diameter gold-plated capacitive microphone core; The pickup distance is up to 130cm.

Product number:RX-C6830/01 RX-D6830/01



  • Description
  • Technical Specs
  • Connection
  • Ø Restmoment original all digital conference technique, Compliant to IEC60065
    Ø Built-in 24 points self restraint return function, close to CD sound quality

    Ø Discussing and display integration design, smart and attractive.

    Ø All digital audio transfer technique, point to point connection mode, remote transmission won’t influence on sound quality. Distance between two units could reach at 150m

    Ø Super-cardioid microphone with 14mm diameter gold-plated capacitive microphone core; The pickup distance is up to 130cm

    Ø Has “Y type hand in hand” and “Hand by hand in ring” connections.

    Ø Support”PnP”

    Ø Each unit has arbitrary distribution ID address, convenience for installation and avioding ID address repeating

    Ø Stereo earphone output, could adjust volume.

    Ø 5 work modes Limited mode FIFO mode Apply mode Voice activating mode Free discussion mode

    Ø Send/receive message function

    Ø Dual backup function: The unit has a conference-specific 6-pin cable (6-pin male/female lockable connector) interface and an RVVP2*0.5 cable (48v phantom power XLR male) interface.When a link fails, the microphone still works.

    Ø Cooperated with video controller and camera, have video tracing function.

    Ø Chairman unit have Priority, could switch off all the speaking units.

    Ø System support 150 chairman units. One of them can be designated as the executive chairman.

    Ø In combination with the corresponding software modules, multiform voting can be implemented:

       ● Parliamentary: agree/oppose/abstain, Pass-rate setup

       ● Multi choice/Opinion poll:1/2/3/4/5

       ● Audience response/Rating:--/-/0/+/++, could setup content

       ● Score: 0--100, practically participant person as average fraction

    • Tabletop unit-High-end conference unit
  • Mode

    RX-C6830/01 Series

    RX-D6830/01 Series

    Unit type

    Chairman unit

    Delegate unit


    Depends on system controller,≤65535

    Frequency respond

    20—20KHz (Human voice golden Frequency respond)

    MIC type


    Sensitivity of MIC




    Dynamic Range


    Resolution of channels


    Total harmonic distortion

    < 0.05%

    Working power


    Maximum power


    Control type


    Earphone output

    16Ω,250mW / 32Ω,125mW

    ID edit

    Setting and distributing by system controller

    Connection mode

    “hand by hand” and “Hand by hand in ring”


    Big 6 pin DIN and XLR male connector

    Video tracking function



    L×W×H:181× 118×60mm(Exclude the microphone pole)


    Black, Silver,Grey (Custom-made)
