Full digital infrared language distribution system-Full digital 8-channel infrared receiver unit RX-E1008XP
Full digital infrared receiving unit can receive 8 languages; It can be powered by AA battery or rechargeable lithium battery pack; It has channel selection, volume adjustment and power control switch. It can compatible with the infrared simultaneous interpretation system and conforming to IEC 61603-7 standard, which can cross use.
Product number:RX-E1008XP
Download:
- Description
- Technical Specs

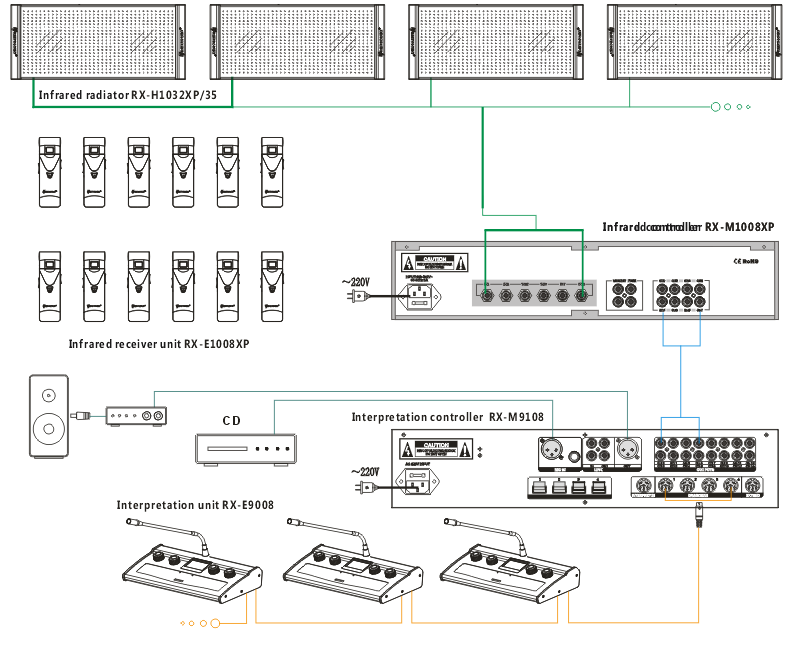

- Connection
-
Ø Steamline design, accord with clay engineering
Ø Adopt Restmoment full digital infrared conference technology, compliant to IEC61603-7 and IEC 60914 international standard
Ø Compatible with the infrared simultaneous interpretation system which is compliant to IEC61603-7
Ø New digital lock function, totally stop outside disturbing and wiretapping.
Ø Adopt 2-8MHz, Infrared receiver will not be disturbed by high frequency driving light source
Ø 8CH audio channels
Ø Once disconnect the earphone and press the power on, LCD will display the last channel number and current battery volumn.
Ø LCD display, can display channel no, signal intensity ,sound volume and battery power.
Ø LCD screen has back ground light to show information in dark hall.
Ø Channel quantity is synchronized same as working channel quantity.
Ø If the signal is low, it also can receive high quality audio signal.
Ø It can adjust the volume individually and has 270° reception angle.
Ø Adopt high capacity rechargeable lithium battery. It will have no power consumption under power off or disconnecting earphone.
Ø In the district of infrared signal, quantity of receivers is unlimited.
Ø Channel Resolution and SNR reach to 102dB; It can perfectly resolve crosstalk and noise ect normal problems. Working with mute function (It will mute automatically, when signal too lower, have no noise), listeners have comfortable, natural and high quality audio finishing
Ø Receivers have guard function, built-out guard advice equipment.
Ø 2 hanging modes, gallus mode and clip mode. It can be hold in pocket or hanged, even taken on desk.
Ø Extra low power consumption. Can continue to work for 30 hours if you use our original lithium lon battery. Also you can use alkaline battery.
Ø A charge box can accommodate 36 / 72 /108 receivers. Convenient to transport and carry.
Ø This system can work outdoor under sunshine.
Ø 3.5mm stereo earphone output
Ø Can work with anti-theft detection machines
Ø Dimension(L X WX H): 153x 48x 23mm
Ø Color: black, grey
Ø Weight: 0.1kg
Keywords:- Full digital infrared language distribution system-Full digital 8-channel infrared receiver unit
-
Model
RX-E1008XP
Channel
8 CH
Modulation mode
DQPSK compliant to IEC61603-7
Carrier frequency
2-8MHz
Audio processing
IR-DSP
Distortion
<0.2%
SNR
>102 dB
Working Voltage
3.7V
Earphone Load
320hm 250mW
Earphone Output
3.5mm Socket X1
ON
Plug earphone and press “ON/OFF” key
OFF
Disconnect the earphone/no signal shut off automatically/press ON/OFF 2 seconds
OFF delay
Disconnect the earphone in 0 second/no signal about 2 minutes
Battery
Lithium battery or Alkaline battery
Battery life
30 hours
LCD Display
channel, signal, power weak reminder
Dimension
153x48x23mm
Weight
0.1kg
Color
Black, grey
-
