Programable Control System Controller RX-M8900S
RX-M8900S also compatible with IOS (IPad / iphone), android , （the traditional RF touch) network control host, support network cascade, intelligent control network, and is fully compatible with conventional control methods in the control program , Luxurious and beautiful appearance, The product debut will be a new generation of intelligent control host representatives,lead the development trend in the control areas。
Product number:RX-M8900S
Download：
- Description
- Technical Specs

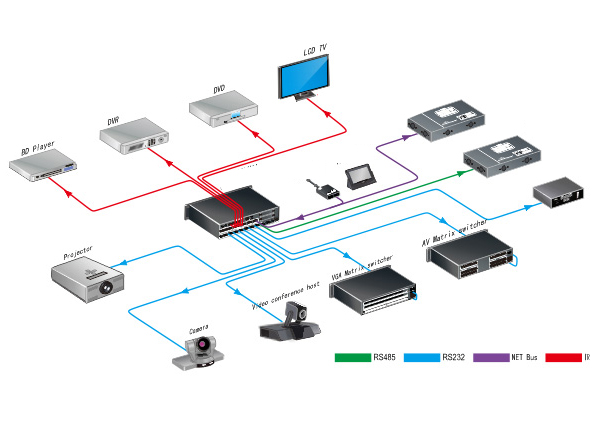

- Connection
-
Ø Adopt Restmoment open programmable control platform. It has humanized Chinese/English operation interface and interactive control structure
Ø Fully support remote network control, built-in network interface, support network cascade, support ipad/iphone handheld terminal, communicate with the controller through wifi
Ø Human-machine interface programming is fully compatible with traditional touch-screen programming methods
Ø Using the latest 32-bit embedded processor. The processing frequency is 667MHz
Ø Adopts highly integrated co-processing chips. And the LAY OUT makes the system run very stable and smooth
Ø Built-in 512MB memory and 2G large-capacity FLASH memory
Ø 8 independent programmable RS-232 control interfaces. It can send and receive RS232, RS485, RS422 format data
Ø 8 independent programmable IR infrared emission ports. The infrared emission ports can be used as serial ports, making the total number of programmable ports reach 16pcs
Ø 8 digital I/0 input and output control ports with protection circuit
Ø 8-way weak current relay control interface
Ø 2 NET network control interfaces. It can connect max 256 network devices in parallel
Ø Any control protocol or control code that can be programmed by the user
Ø Built-in intelligent infrared learning function module. It can send two codes with one key
Ø Support hardware learning infrared function. User can easily replace infrared devices on site without reprogramming
Ø The infrared code library can be downloaded from the Internet
Ø Adopt SMT full-chip production process
Ø Full standard environmental protection power supply (110V-240V), suitable for any area
Ø Adopt aluminum alloy body, use non-hazardous material materials, and pass ROHS environmental protection certification
Ø Using a standard 1U chassis, it can be installed on a 19-inch standard cabinet
Keywords:- Programable Control System Controller RX-M8900S
-
Model
RX-M8900S
CPU
32-bit ARM microprocessor
Processor
up to 667MHz
Standard memory 512M SDRAM, 2G FLASH Expanded memory Can expanded to4GB COM Port
8 DB9/M port，bidirectional transmission RS232, RS485 and RS422 signals
IR port
8 terminal modules, 16PIN output pin headers
Input I / O ports
8 terminal modules, 9PIN output pin headers, has protection circuit, supports digital input signal 0-5V
NET Port
2 terminal module, 4PIN pin headers, supports NET control bus, provides DC24V/1A output power
Network extension interface One RJ11 6PIN interface for expansion card Weak relay ports
8 terminal modules, 16PIN output pin header, normally open independent circuit breaker, rated 1A/5V DC
Upload program interface
1 DB9 female port (rear panel)
Power AC100-240V adaptive power supply Size
432L X 236W X 45H（mm）
Weight
5.0kg
-
